2.23 Joystick Module

Overview

In this lesson, you will learn something about Joystick. The basic idea of a joystick is to translate the movement of a stick into electronic information that a computer can process. It can be applied to work as the controller of devices, such as robot.

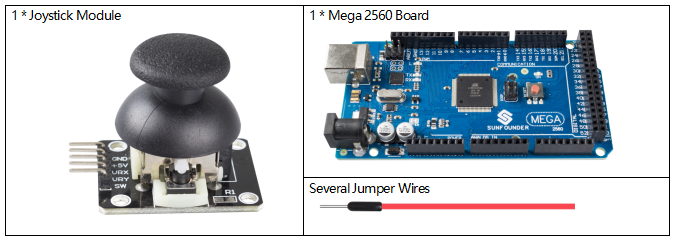

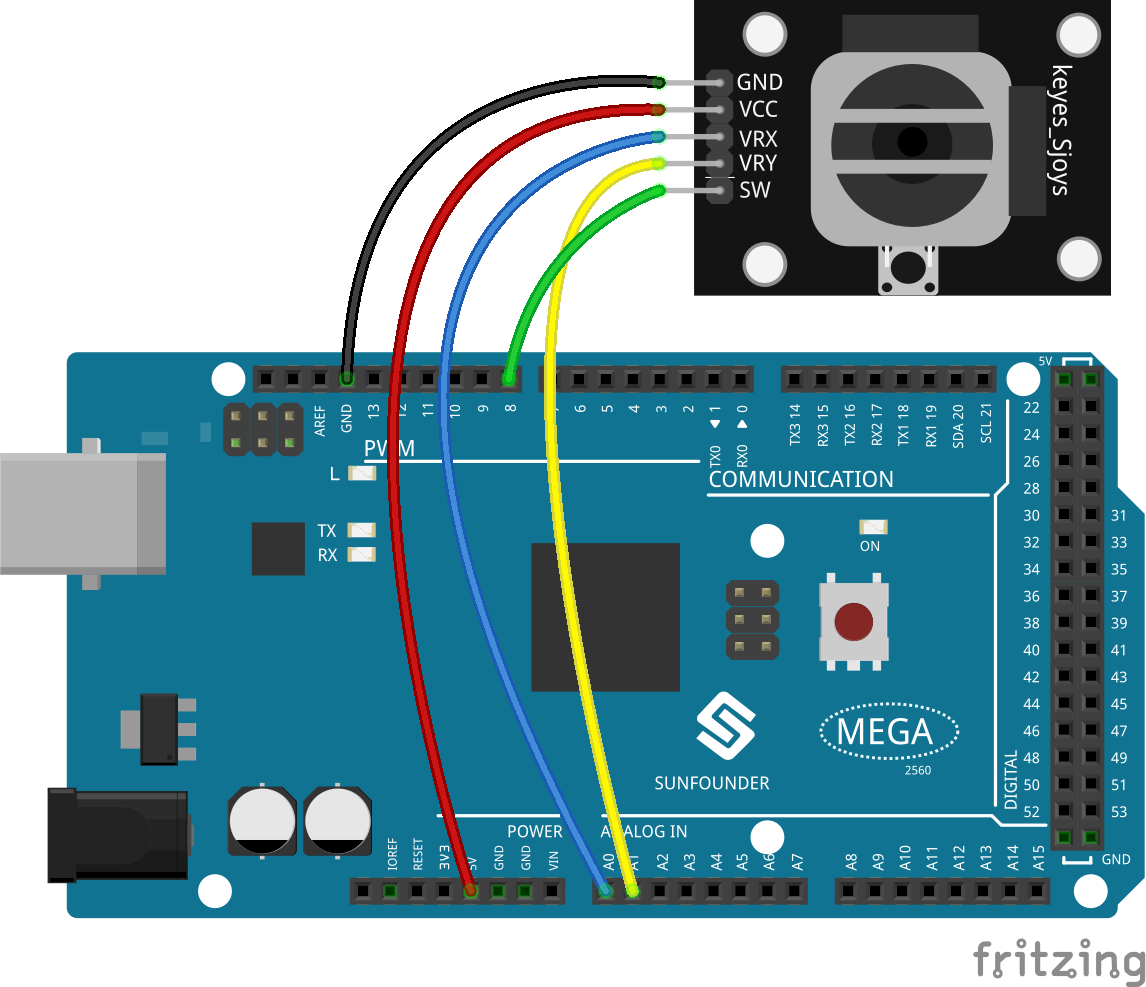

Fritzing Circuit

In this example, we get the GND of the Joystick extended to connect with GND, VCC with 5V, VRX with pin A0. After that, we make VRY connect with pin A1, SW connect with pin 8.

../_images/image196.png

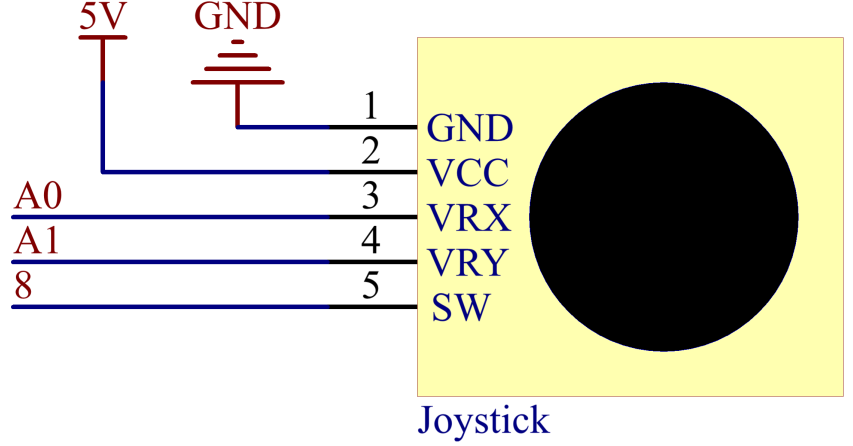

Schematic Diagram

../_images/image197.png

Code

Σημείωση

  • You can open the file 2.23_joystick.ino under the path of sunfounder_vincent_kit_for_arduino\code\2.23_joystick directly.

  • Or copy this code into Arduino IDE 1/2.

  • Or click Open Code to open it in Web Editor.

  • Then Upload the Code to the board.

Uploaded the codes to the Mega2560 board, you can open the serial monitor to see readings on the X-axis and Y-axis of Joystick, as well as the button status of Z-axis. The values of the X-axis and Y-axis are the analog values, which vary within the range「0」~「1023」. The Z-axis shows numerical value and the state is either 「1」 or 「0」. Refer to 1.5 Analog Read and 1.4 Digital Read to check the code explanation.

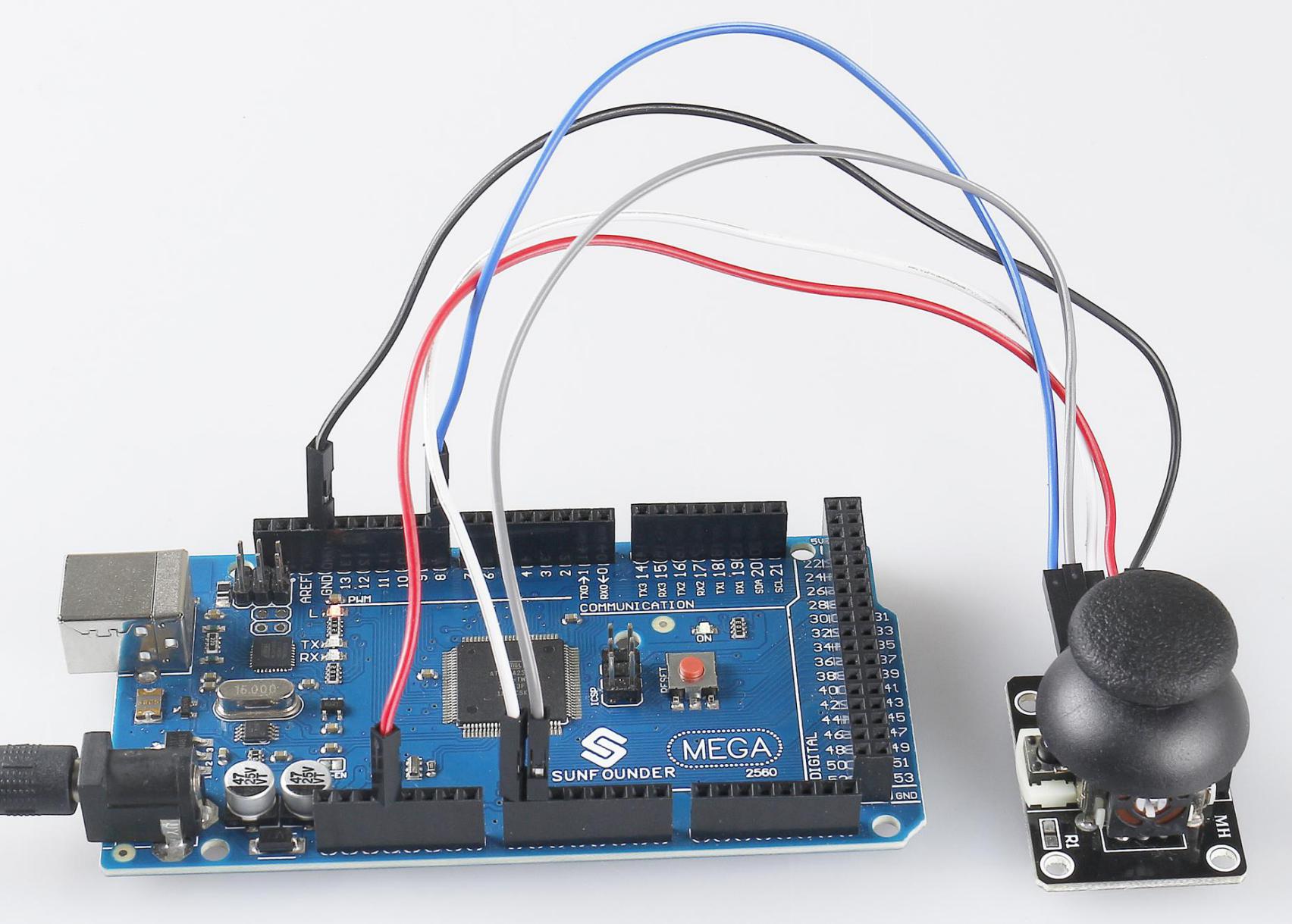

Phenomenon Picture

../_images/image198.jpeg
